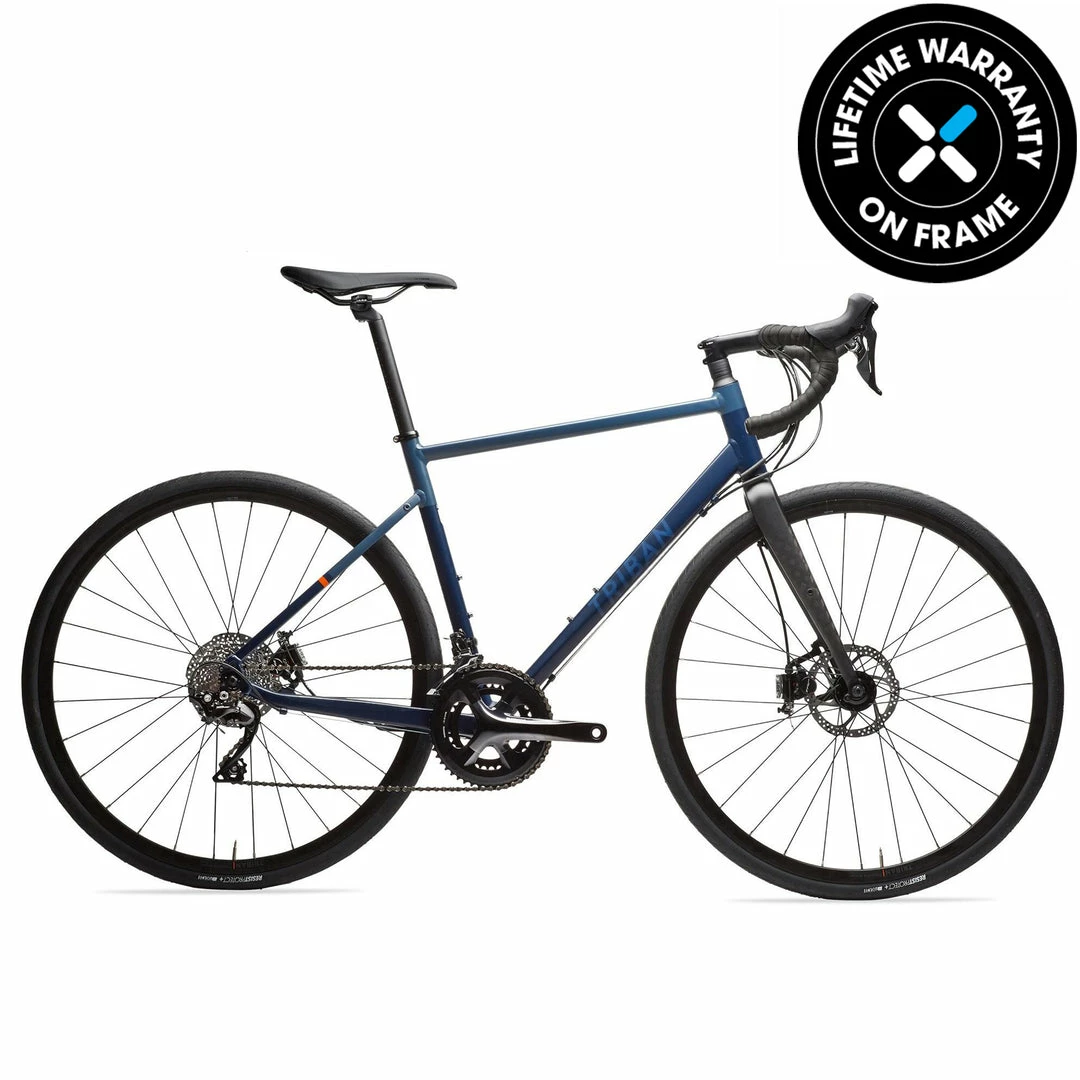

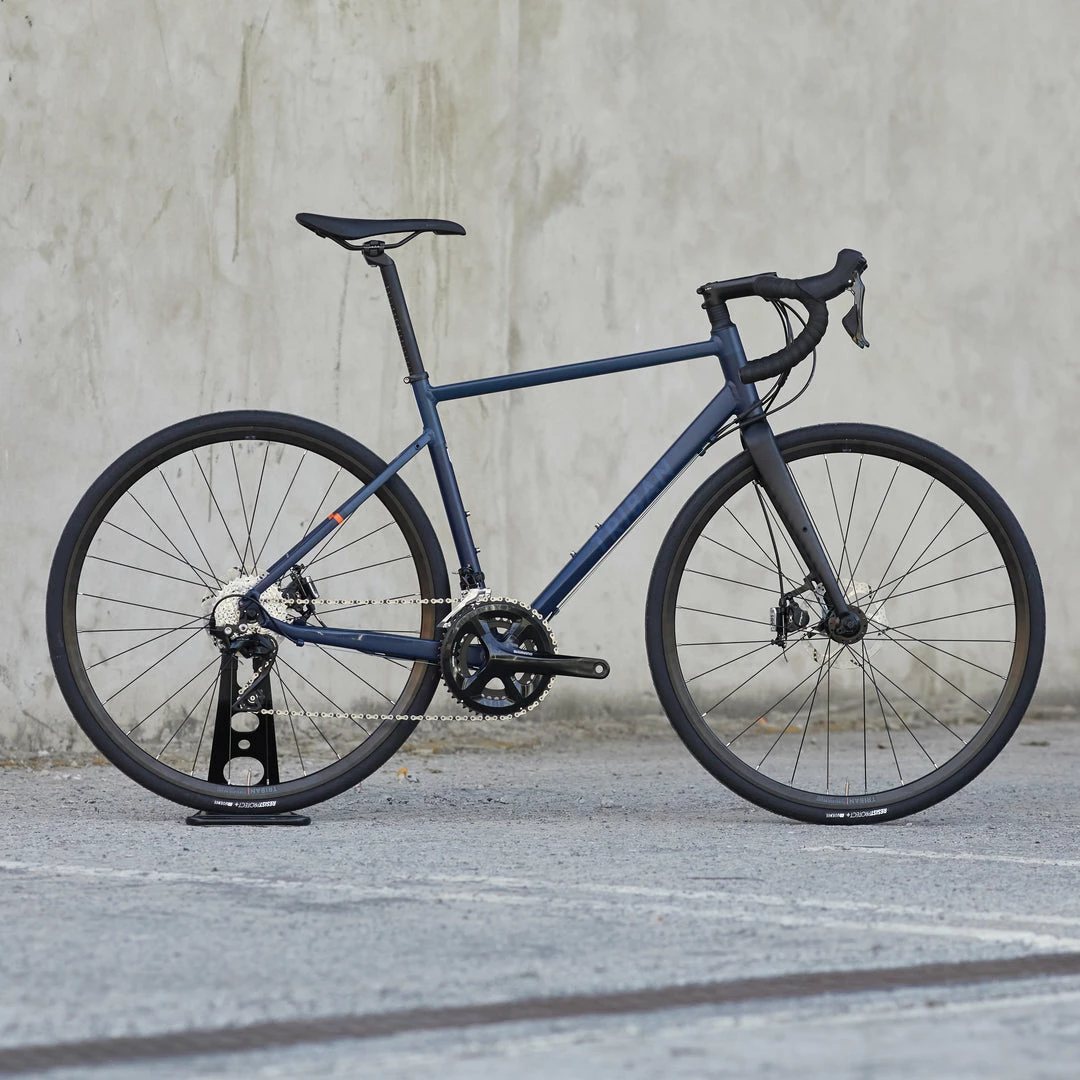

Cheapest ✨ Road & Gravel Biking Triban RC520, Shimano 105 Disc Brake Aluminum Road Bike ✔️

Cycle further and more often with the most comfortable road bike we’ve ever designed. Discover its hydro-mechanical disc brakes, specially-designed geometry, and the Shimano 105 groupset

for your regular rides. It provides matchless comfort for cycling further and more often.

Frame

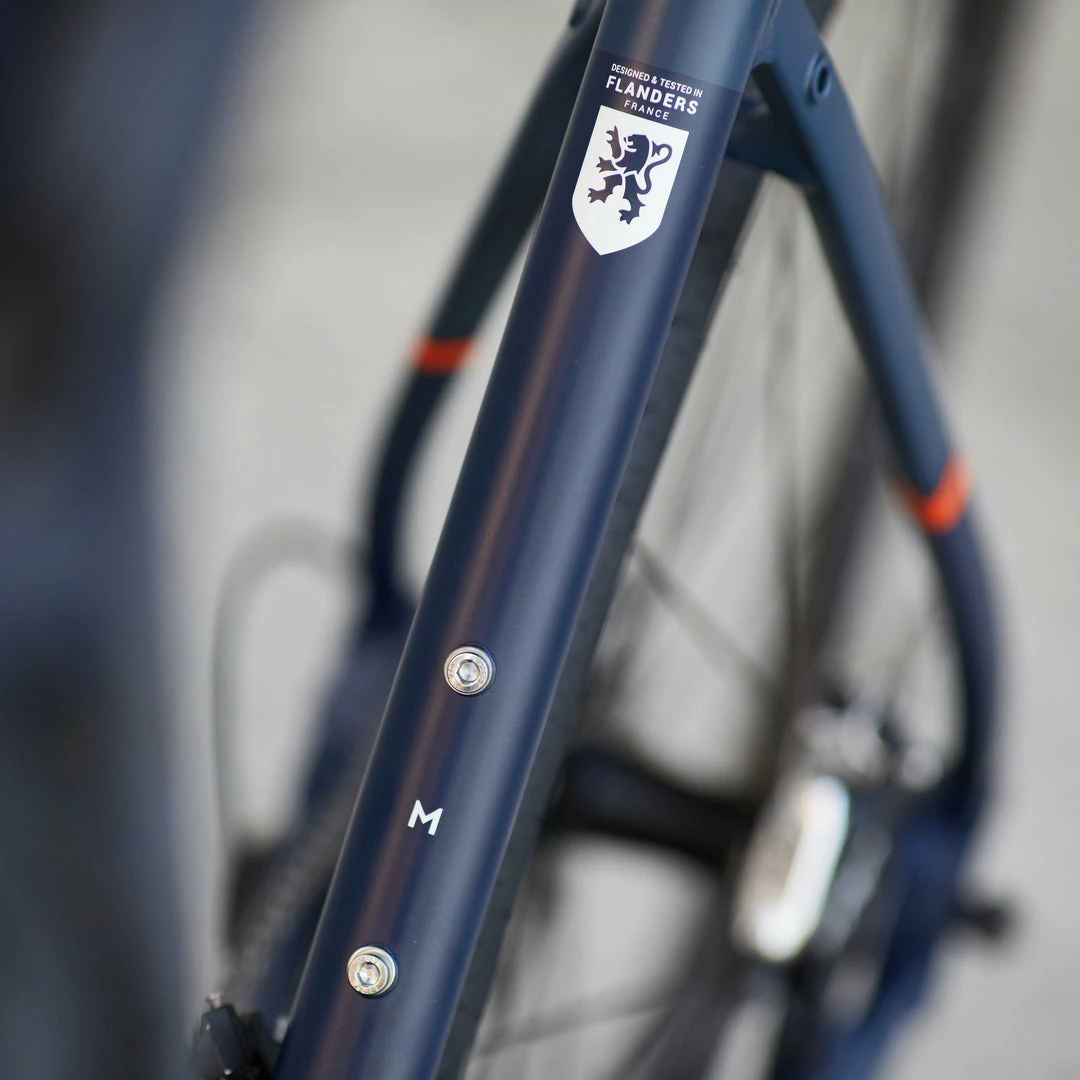

New Triban Evo frame in 6061 T6 aluminum, comfort-oriented geometry with adapted slope
Weight: 4 lbs in size M
Strong, versatile frame: carrier and mudguard can be installed
Compatible with tires up to 36 mm cross-section

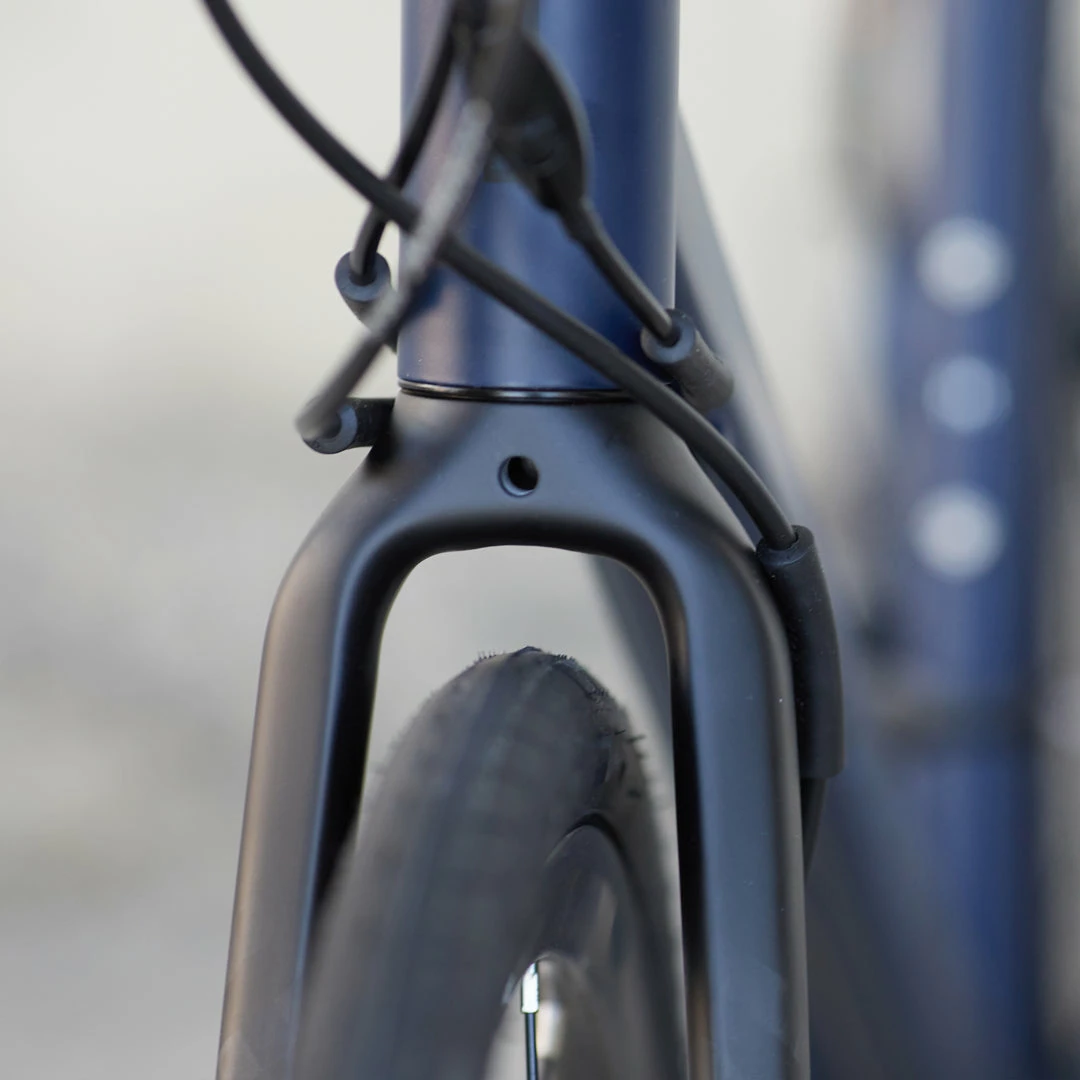

Fork

New Triban Evo fork with carbon blades and aluminum 1-1/8″ Aheadset center. This fork combines comfort, low weight, and precision.
The carbon has been designed to provide good lateral rigidity and good filtering of frontal vibrations.
Inserts on the blades for mounting a front carrier
Max weight to be carried on the fork: 19.8 lbs
Holes on the wheel axle to attach a mudguard
Compatible with tires up to 36 mm cross-section

Handlebar / stem / steering

Ergonomic aluminum Triban handlebars for a better grip and excellent comfort.
Handlebar width (axle-to-axle):
XS, S, M: 400 mm.
L, XL : 420 mm.

New Triban stem:

XS : 70 mm
S: 80 mm
M: 90 mm
L: 100 mm
XL: 110 mm

Drivetrain

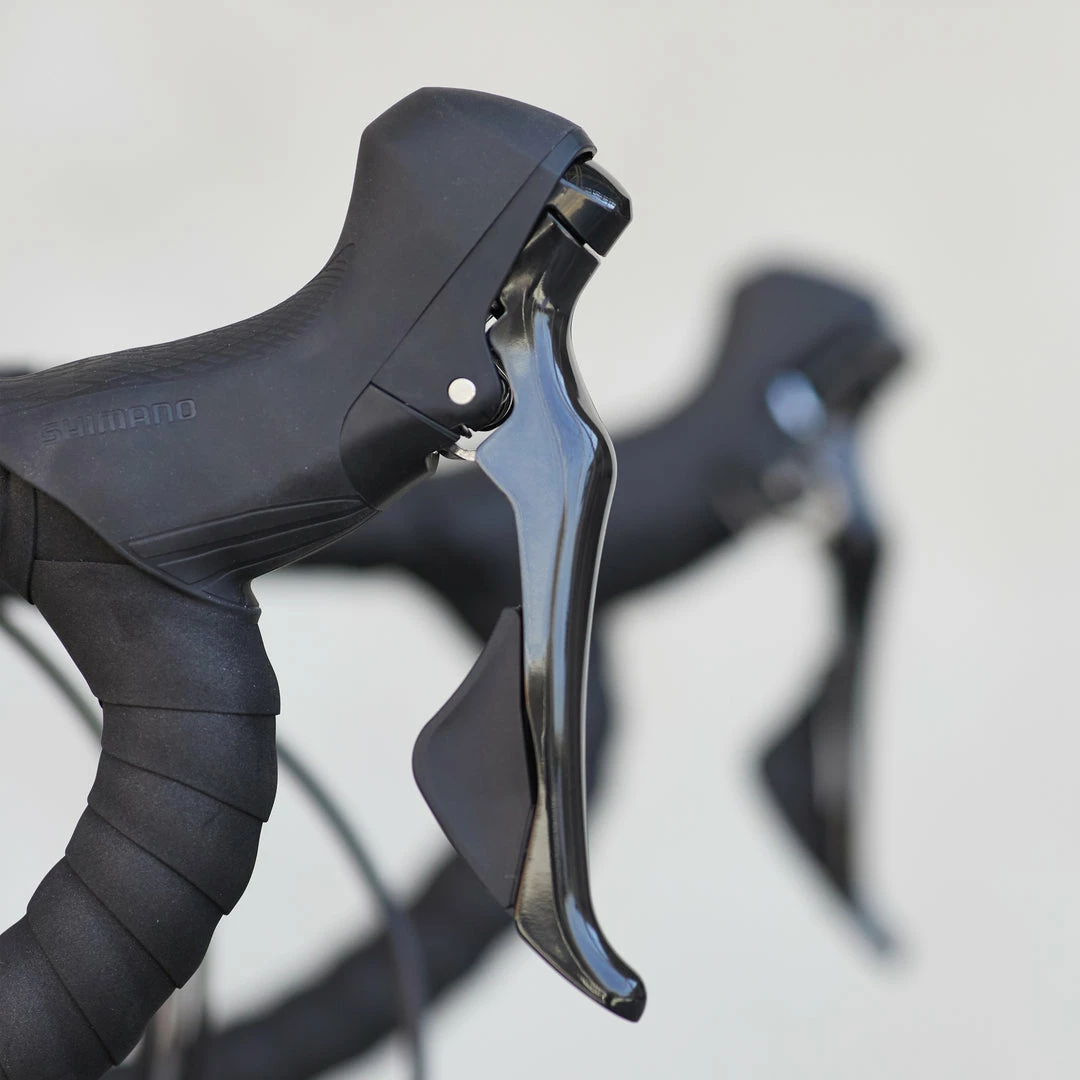

Shimano 105 R7000 shifters
Shimano 105 R7000 front derailleur
Shimano 105 R7000 rear derailleur with 11 speeds and long screed
Total weight: 1.9 lbs

Chain KMC X series

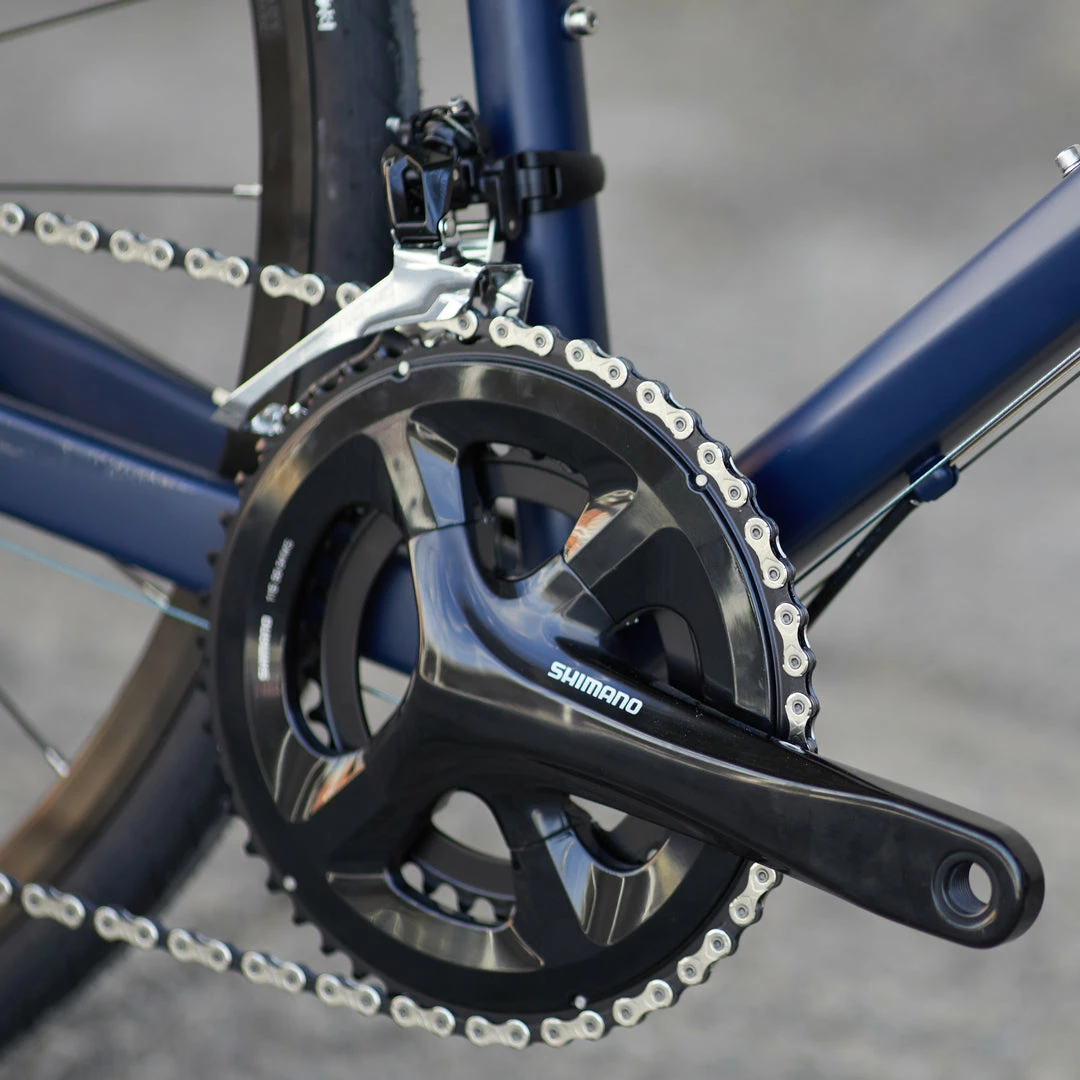

Crankset / cassette

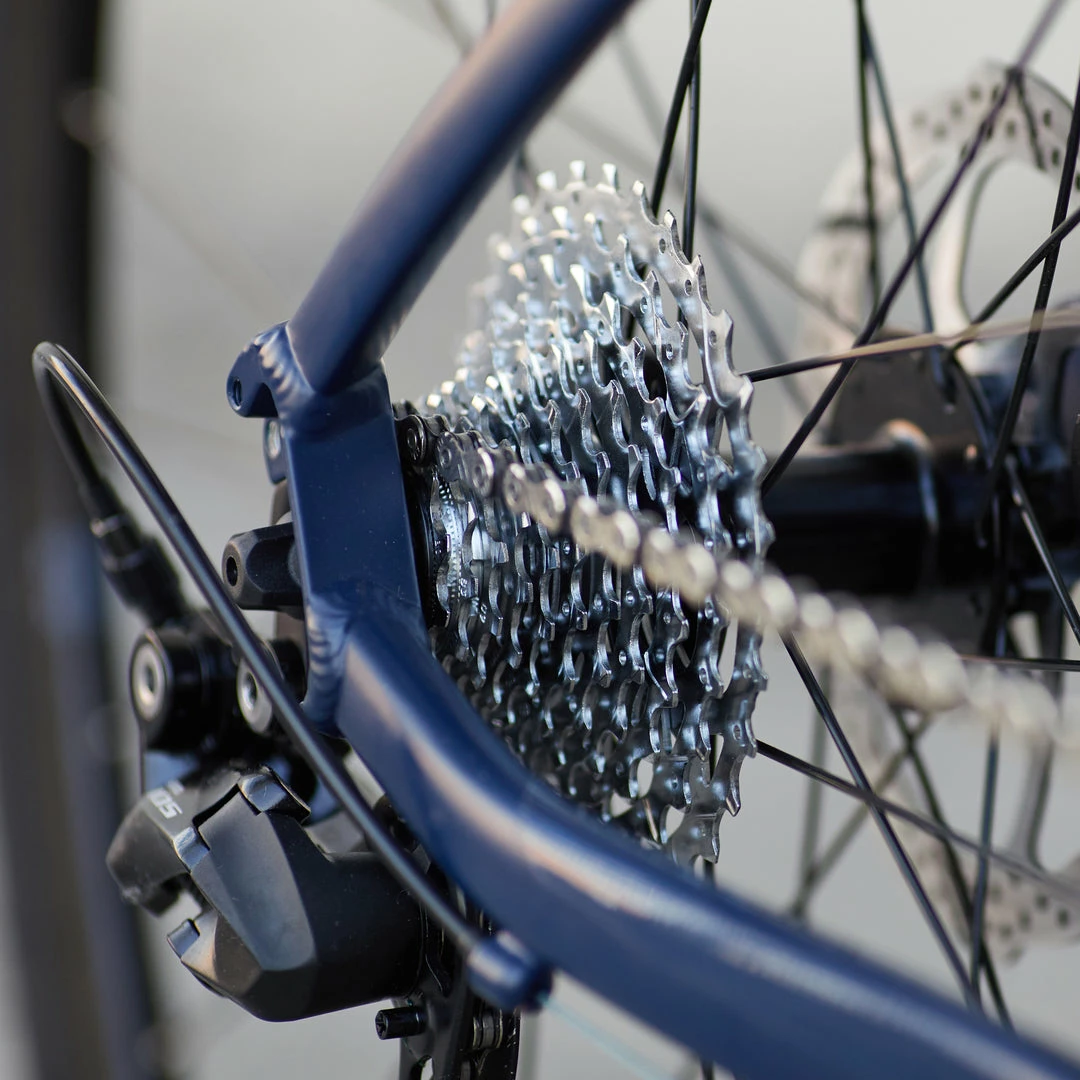

Microshift CS-H110 11S 11/32 cassette
(11/12/13/14/15/17/19/21/24/28/32).

Shimano RS 510 compact bottom bracket 50/34.
Crank length varies according to size of bike:
XS, S: 170 mm.
M: 172.5 mm.
L, XL: 175 mm.

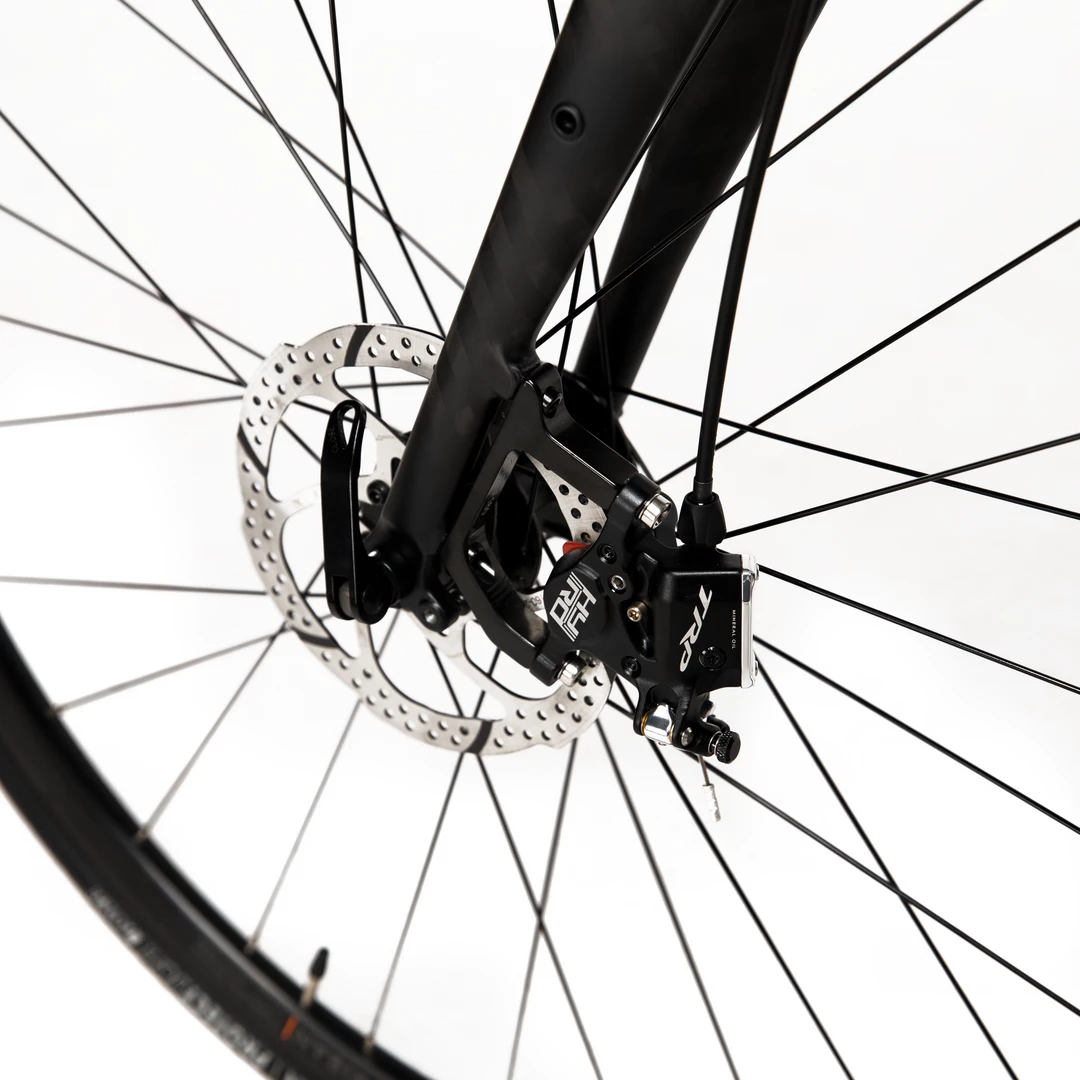

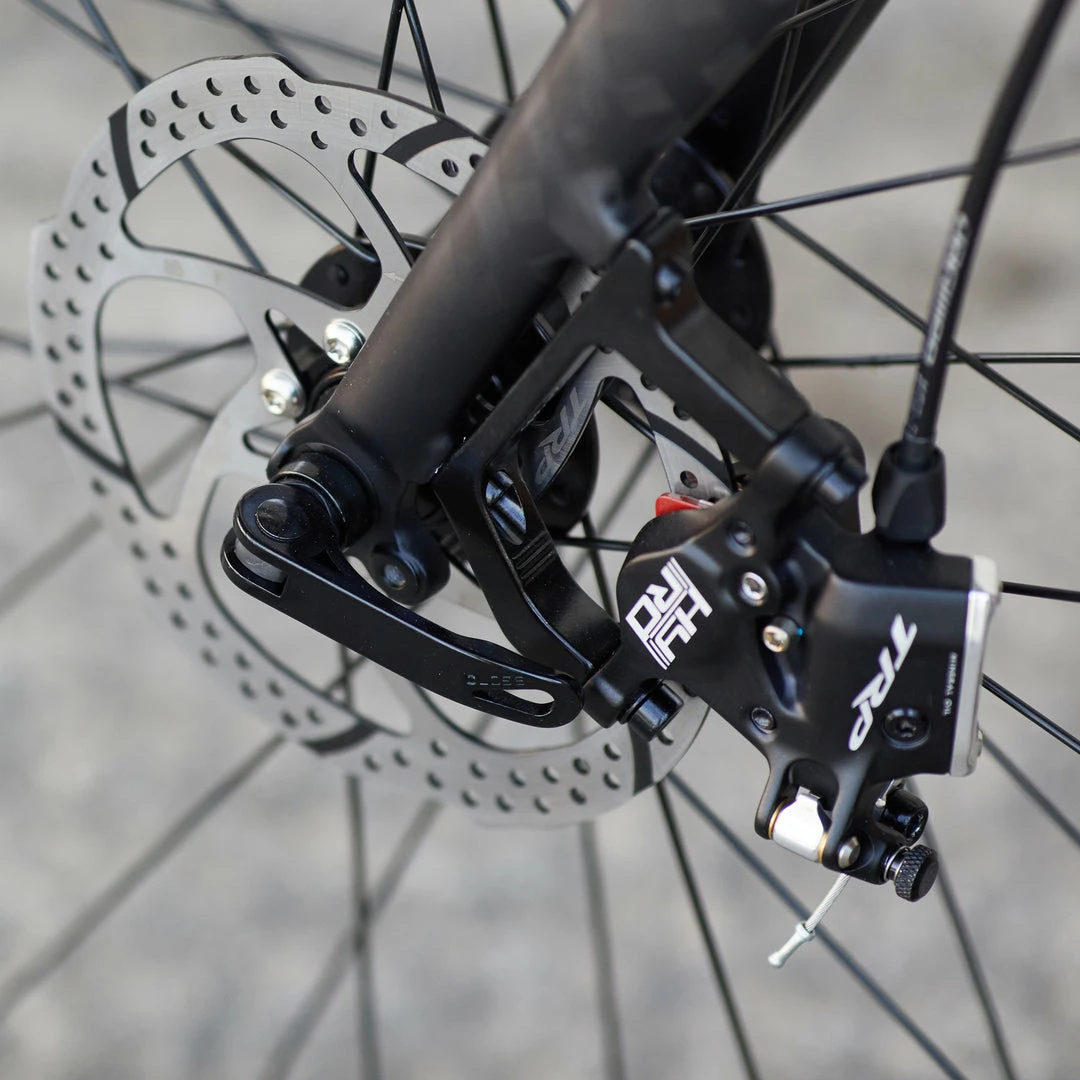

Brakes

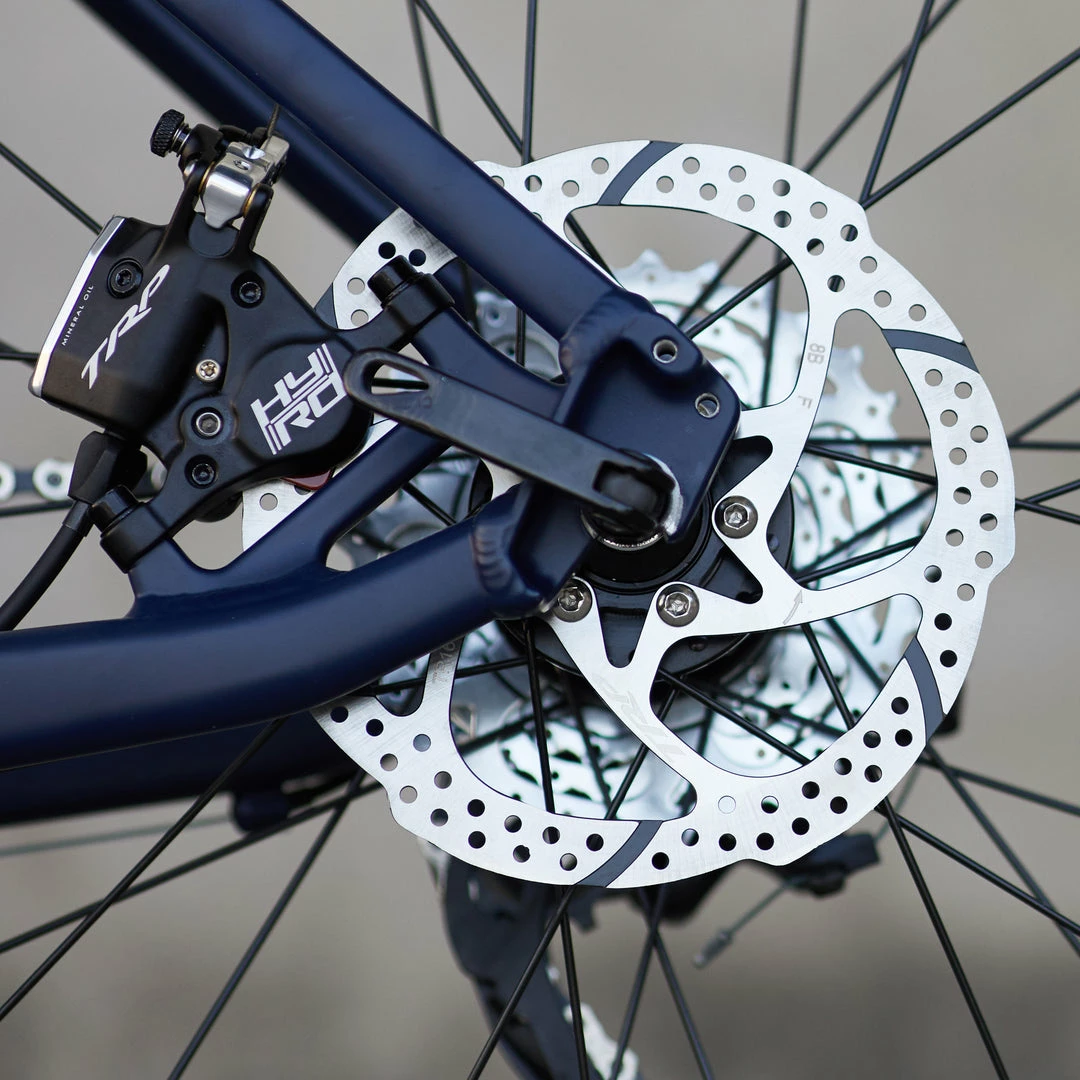

TRP HY/RD disc brakes.
Semi-metal TRP pad (version M515/M525)
Mechanical pulling of hydraulic pistons, ensuring reliability and efficiency
160 mm disc at the front and rear
Anti-compression JAGWIRE housing to ensure precision and efficiency of braking
Waterproof housing cap at the bottom frame diagonal tube

Wheels

Triban Tubeless Ready Light wheels*
6106T6 aluminum.
ETRTO dimension: 622 x 17 C.
24 mm height for increased lateral rigidity.
Crossed steel spokes for greater rigidity (28 front and 28 rear).
Sealed cartridge bearings. Weight per pair (without cassette and QR): 4.4 lbs
*Conversion kit required, including 2 tubeless valves + 2 rim strips + bottle of anti-puncture liquid.

Tires

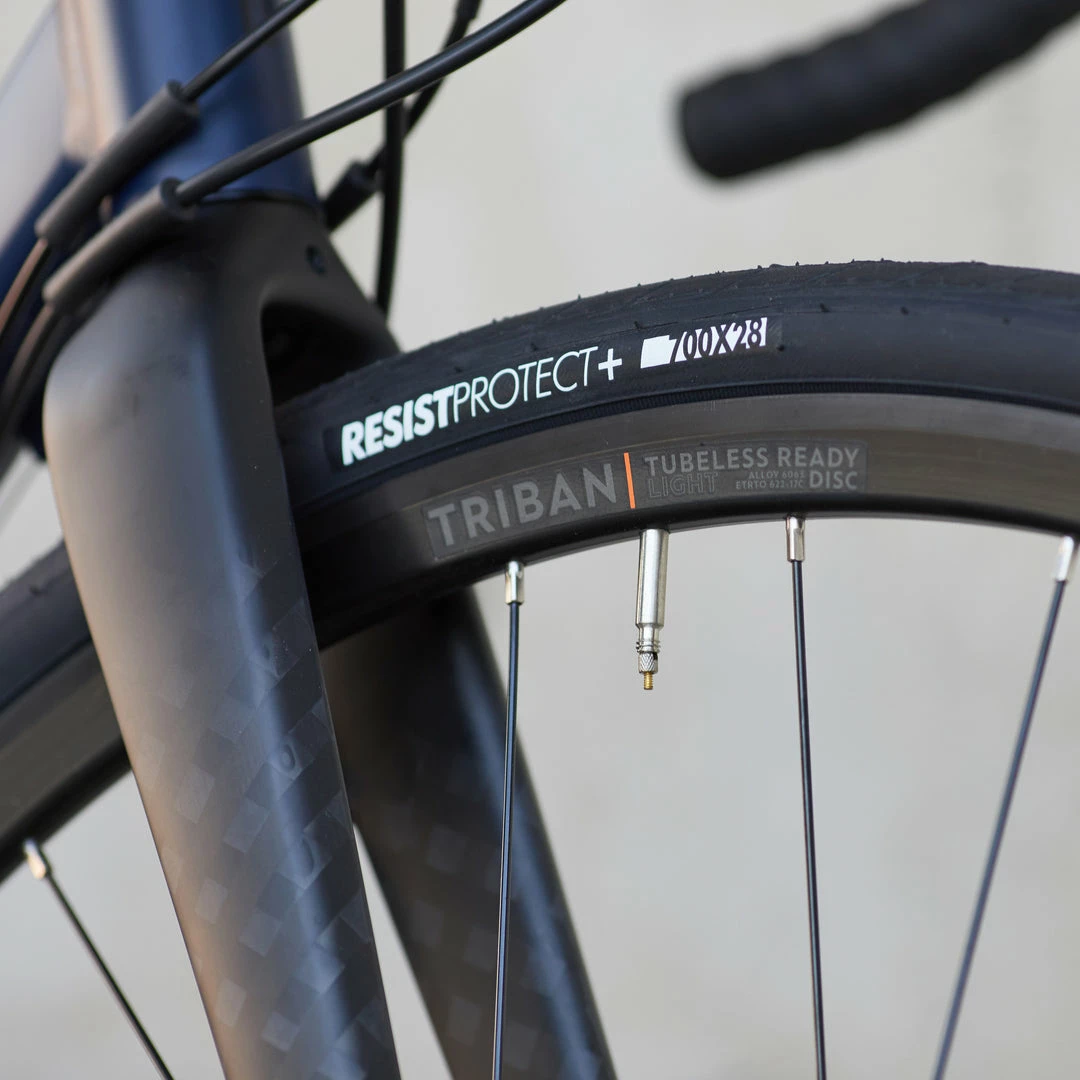

Triban protect light tires
13.8 oz
Skinwall stiff bead
Nylon anti-puncture protection
Durable carcass: 60 TPI.
Dimensions: 28c-622 / 700 x 28c for greater comfort
Max pressure: 8 bar / 116 psi.

Saddle / Seat post

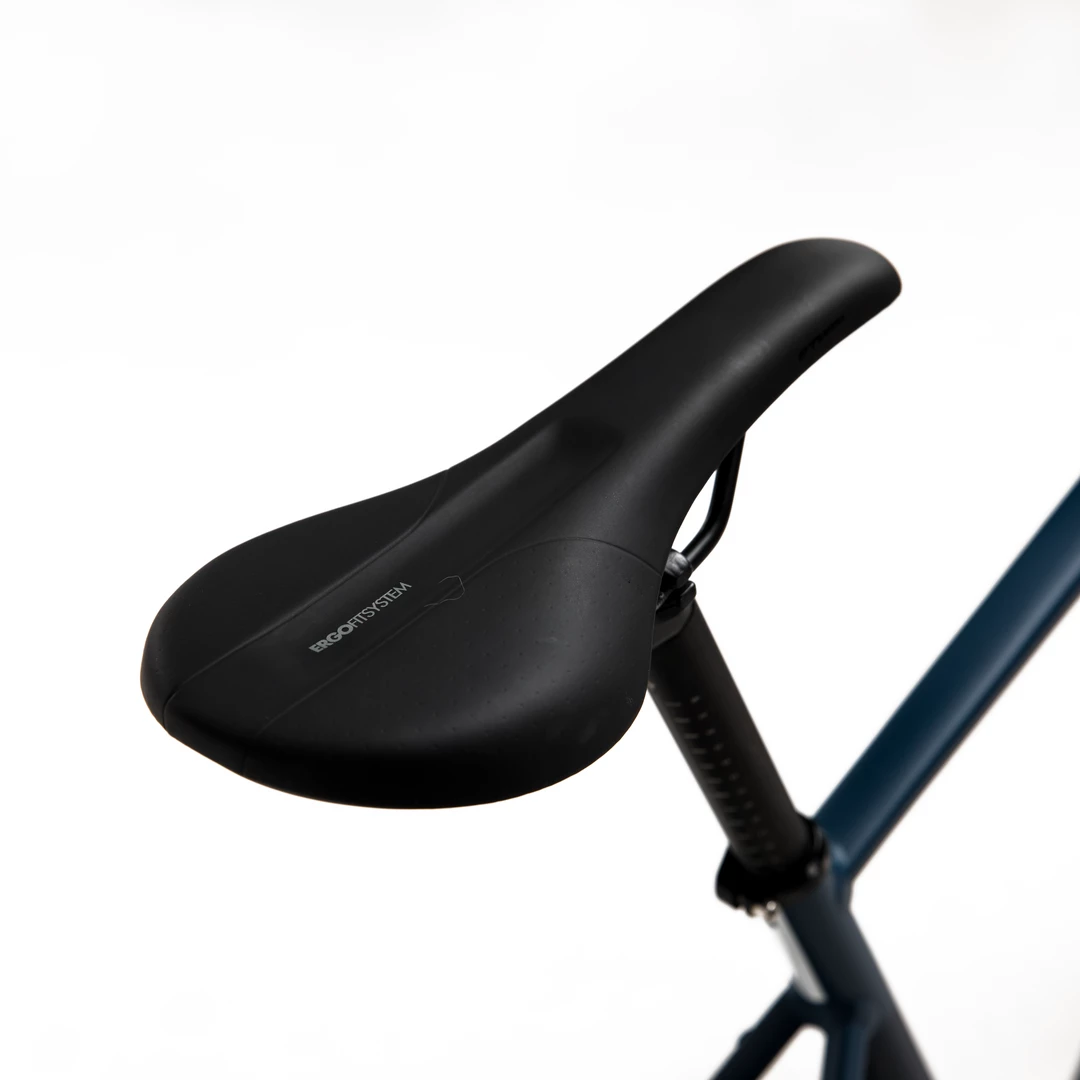

New Triban ErgoFit saddle. Hammock design for greater comfort. Aluminum Triban seat post.

Diameter: 27.2 mm.
Length: 350 mm in M / L / XL, 250 mm in XS / S

Pedals

Double side pedal with toe clips

Weight

Weight without pedals :
XS: 23.1 lbs
S : 23.3 lbs
M : 23.4 lbs
L : 23.8 lbs
XL : 24 lbs

Compatible accessories

BASE KICKSTAND 500 ADULT 26-28 (Model Code 8302792)
SEAT POST CARRIER 500 (Model Code 8387783)
BIKE RACK 500 BCLIP DISC (Model Code 8364376)

Warranty Information

“Lifetime warranty on manufacturing defects for all metal frames, rigid forks, stems, and handlebars
5 years warranty on all carbon frames and forks
2 years warranty on all other parts
Excludes damages arising from normal wear and tear, misuse, negligence, and unauthorized modifications”

Composition

Bike frame : 100.0% Aluminium 6061

Guarantee

Lifetime warranty on frame, handlebar, stem. 2 years on fork and peripheral components.

Cycling comfort : Comfort road geometry, 28 mm tires, foam handlebar tape, new ErgoFit saddle

Versatility : Inserts for carrier and mudguard, suitable for 36mm tires, tubeless ready wheels

Precision : The Shimano 105 R7000 groupset, front and rear derailleur, brake levers.

Lifetime warranty : Triban guarantees the frame, stem, and handlebars for life
