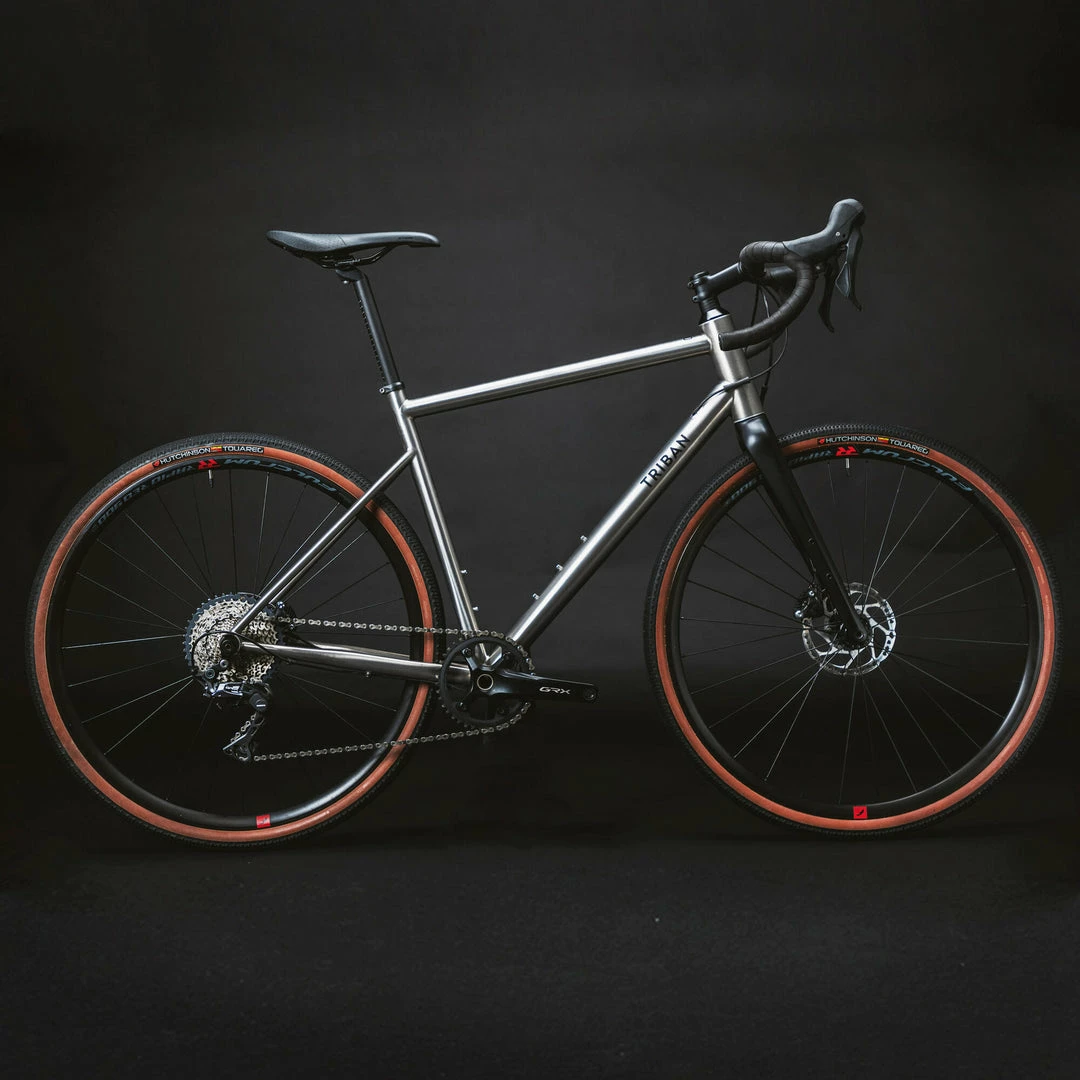

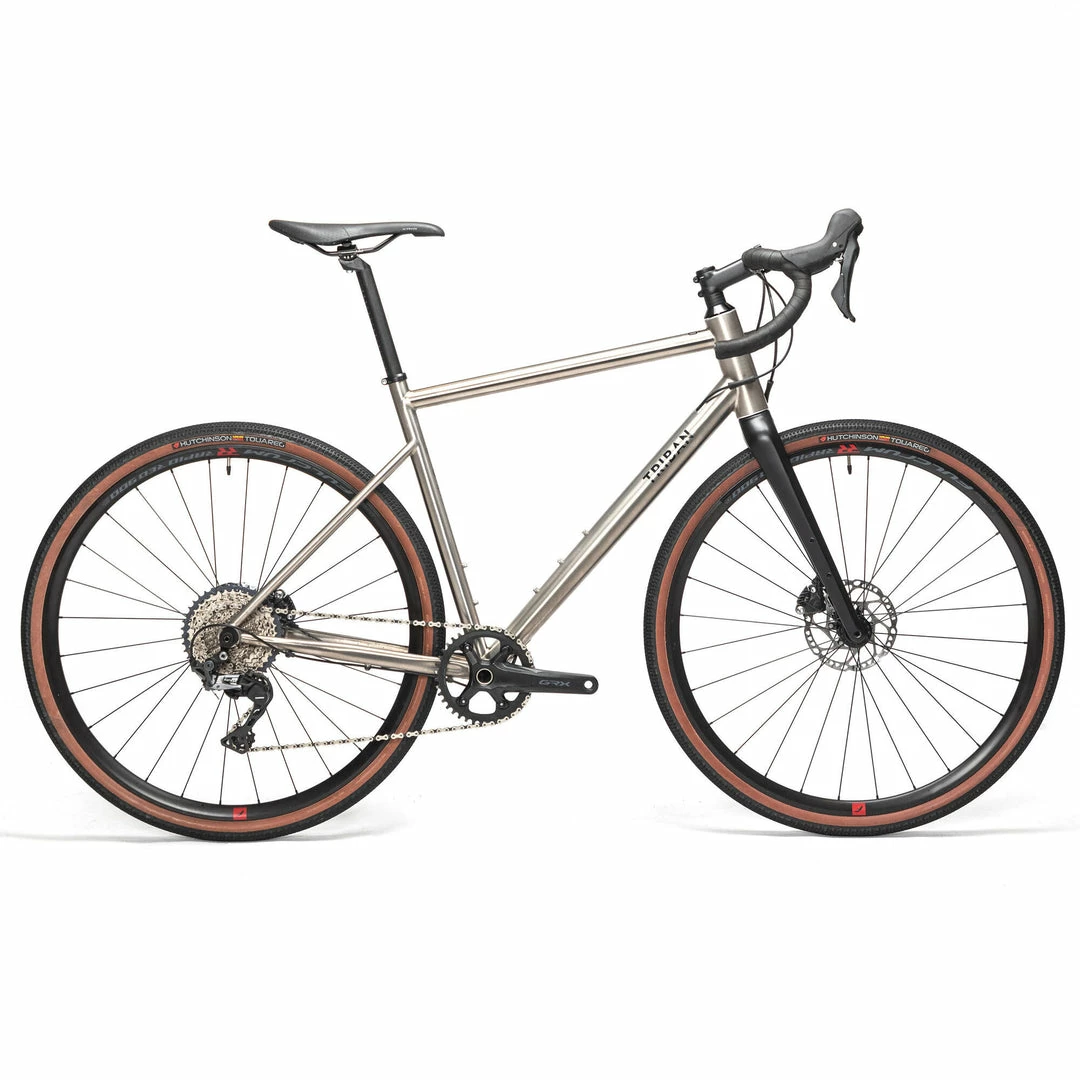

Brand new 🤩 Triban GRVL900, Shimano GRX Titanium Frame Gravel Bike Road & Gravel Biking 💯

This titanium gravel bike is quite possibly the most comfortable bike we have ever designed. Grade 9 titanium frame, carbon fork and steerer tube, Fulcrum RR900 Tubeless wheels, Shimano GRX drivetrain

We have designed and tested this titanium gravel bike for your longer rides. Hit the trails in total comfort

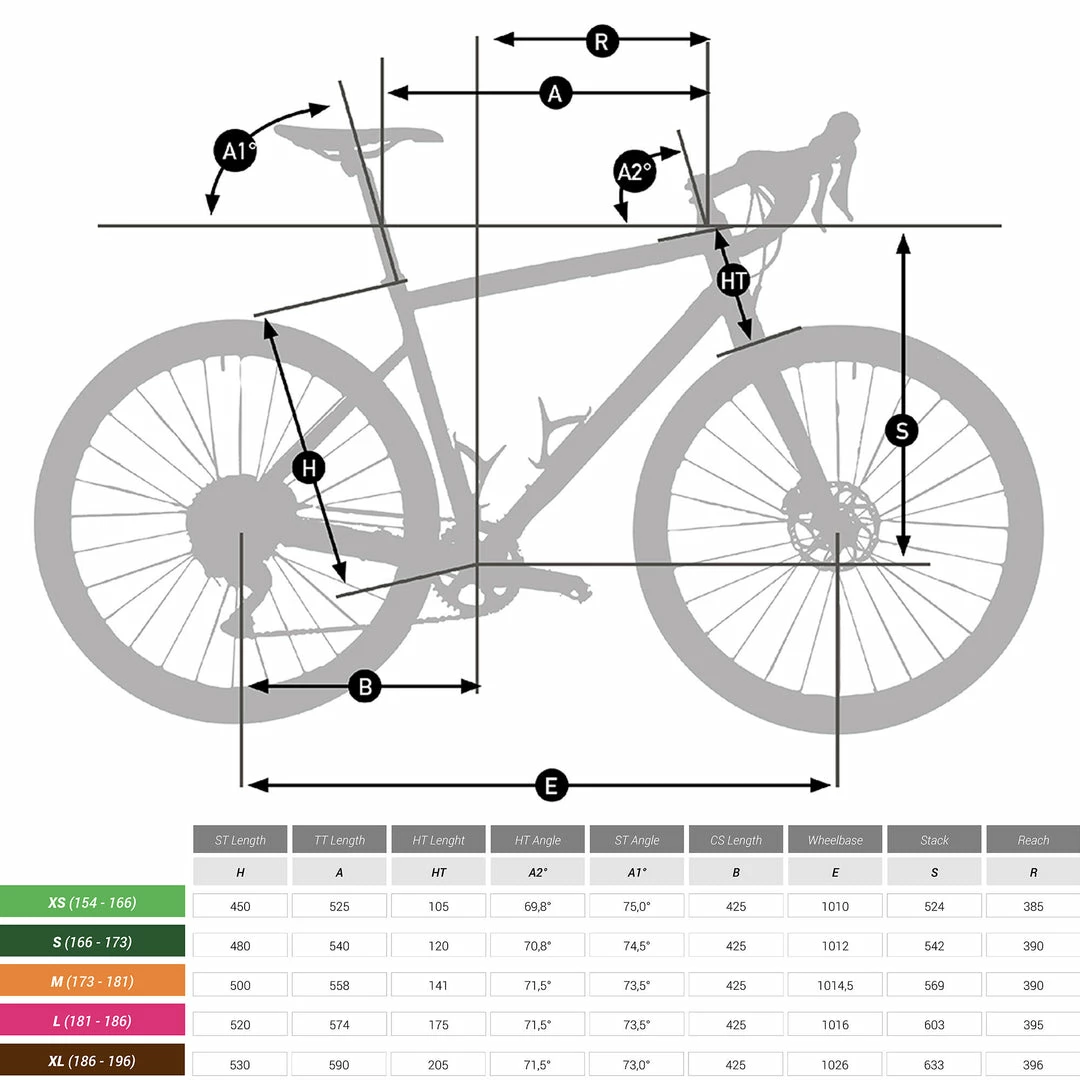

Choosing the right size bike

You should choose the size of your bike based on your height, as well as your build (arm span and leg length).
If you are between sizes, opting for the smaller size will give you a more comfortable position that makes it easier to tackle gravel trails
XS 5’1″-5’5″
S 5’5″-5’8″
M 5’8″-5’11”
L 5’11”-6’2″
XL 6’2″-6’7″

Frame

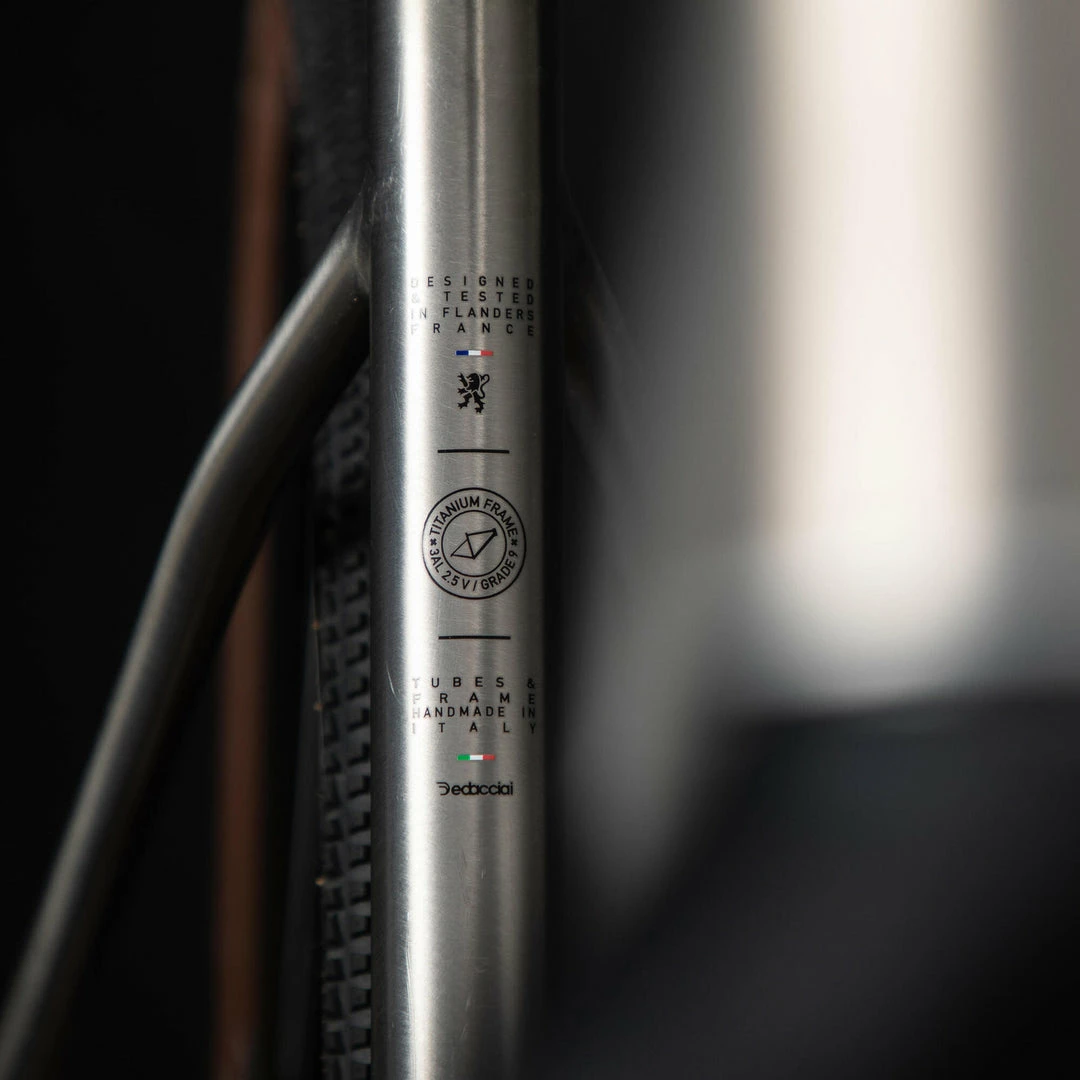

Titanium gravel frame designed in collaboration with Dedacciai, the Italian experts in tube and frame manufacturing, and hand welded. The frame’s geometry is designed to be comfortable and dynamic, creating a simple, long-lasting bike. Triban GRVL geometry for a better balance between comfort, steering, and performance
Grade 9 3AL 2.5V titanium
Weight: 3.5 lbs in size M.
12 x 142 mm thru axle
Compatible with tires up to 700×45 / 650×50

Fork

Monocoque carbon fork, 15.3 oz
15 mm cone Aheadset, 32 mm compression kit, 5 x 5 mm spacers
This fork combines comfort with lightness and precision.
UD carbon fiber, which combines high modulus and intermediate modulus.
12 x 100 mm thru axle.
2 inserts on the blades for installing a bottle cage or bikepacking bag.
Maximum load on the fork: 17.6 lbs,
Compatible with tires up to 700×45 / 650×50

Handlebar / stem / steering

Triban comfort+ aluminum gravel handlebars with a 16° flare for better grip and excellent comfort. Comfort+ bar tape with gel
Edge-edge width:
XS / S: 420 mm.
M / L: 440 mm.
XL: 460 mm.

31.8 mm stem:
XS: 60 mm
S: 70 mm.
M: 80 mm.
L: 90 mm.
XL: 100 mm

Drivetrain

Simple and effective with the Shimano GRX
Shimano GRX 400 shifters

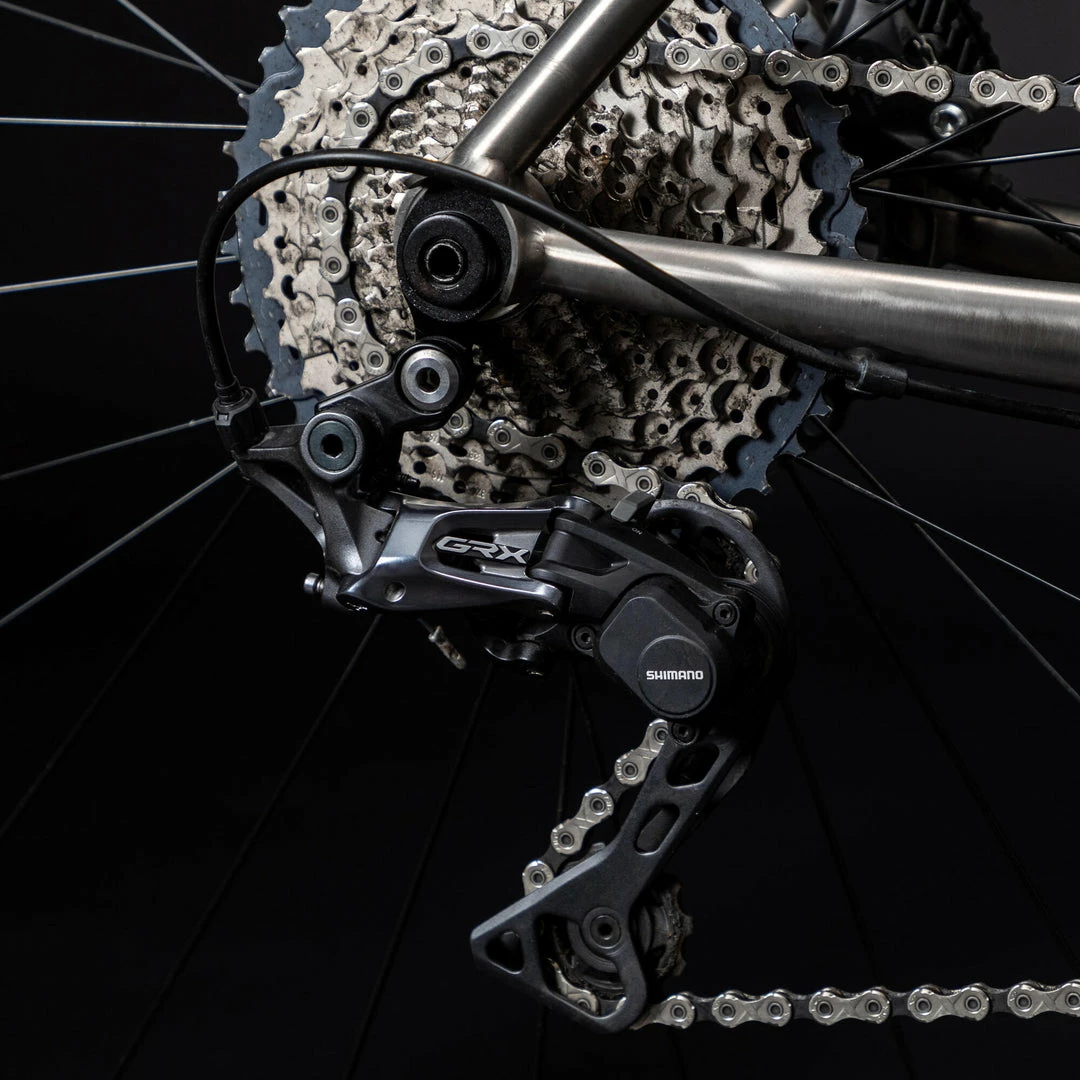

Shimano GRX 800 / RD812 rear derailleur
Rear derailleur weight: 9.3 oz
KMC X11-1 + CL555 11S chain
Chain weight: 9 oz
SHIM KOT41SP300ML cables

Crankset / cassette

Shimano M7000 SLX 11S KCSM7000142 11-42 cassette
(11/13/15/17/19/22/25/28/32/36/42)
Cassette weight: 1 lb

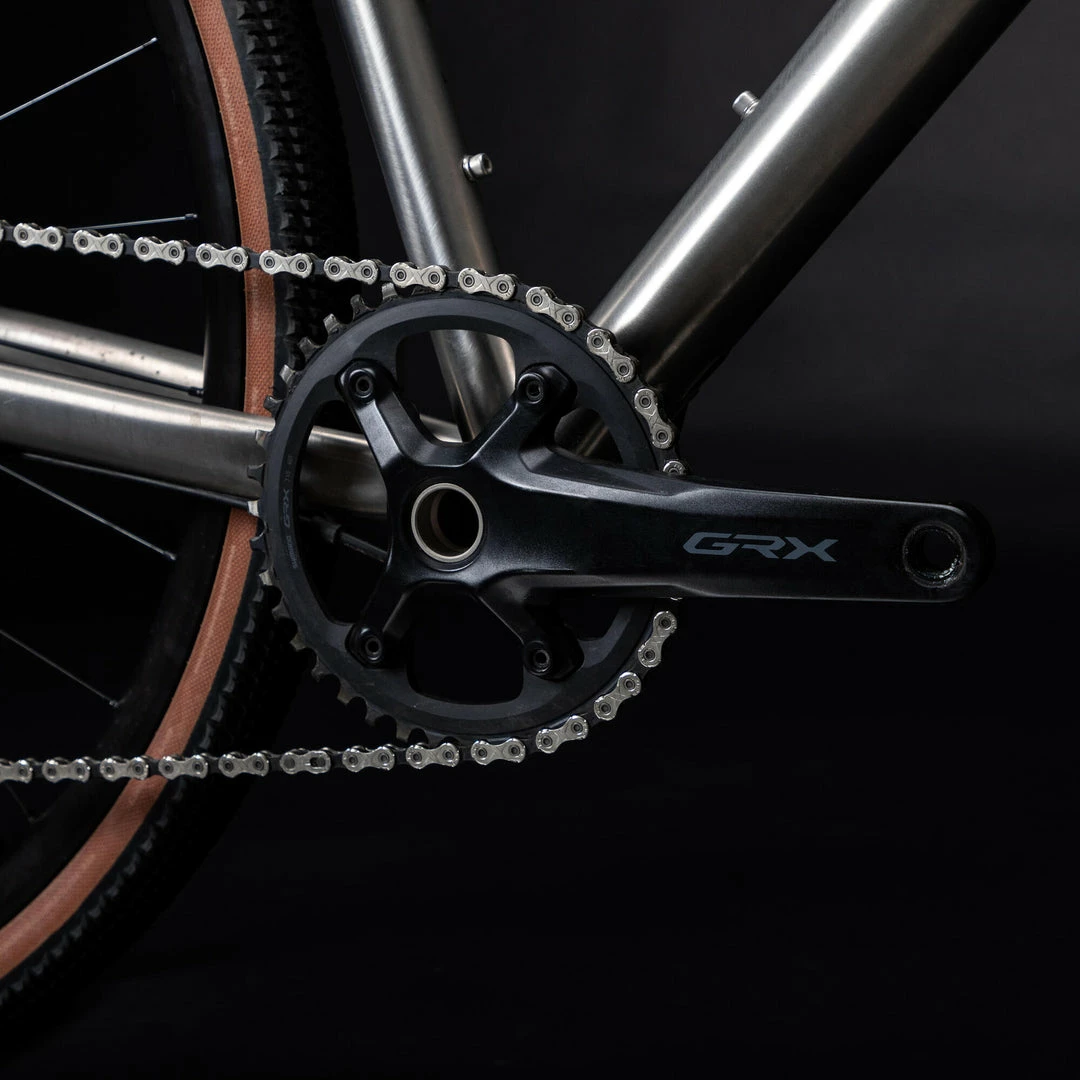

Shimano GRX 600 40T chainset
RX6001 AFCRX600111
Different crank lengths depending on the bike size:
XS, S: 170 mm.
M, L, XL: 172.5 mm.
Bottom bracket weight in 172.5: 1.6 lbs

Bottom bracket: BB PFIT ROAD TIAGRA ABBRS500PB / 8435274 – 86 MM

Brakes

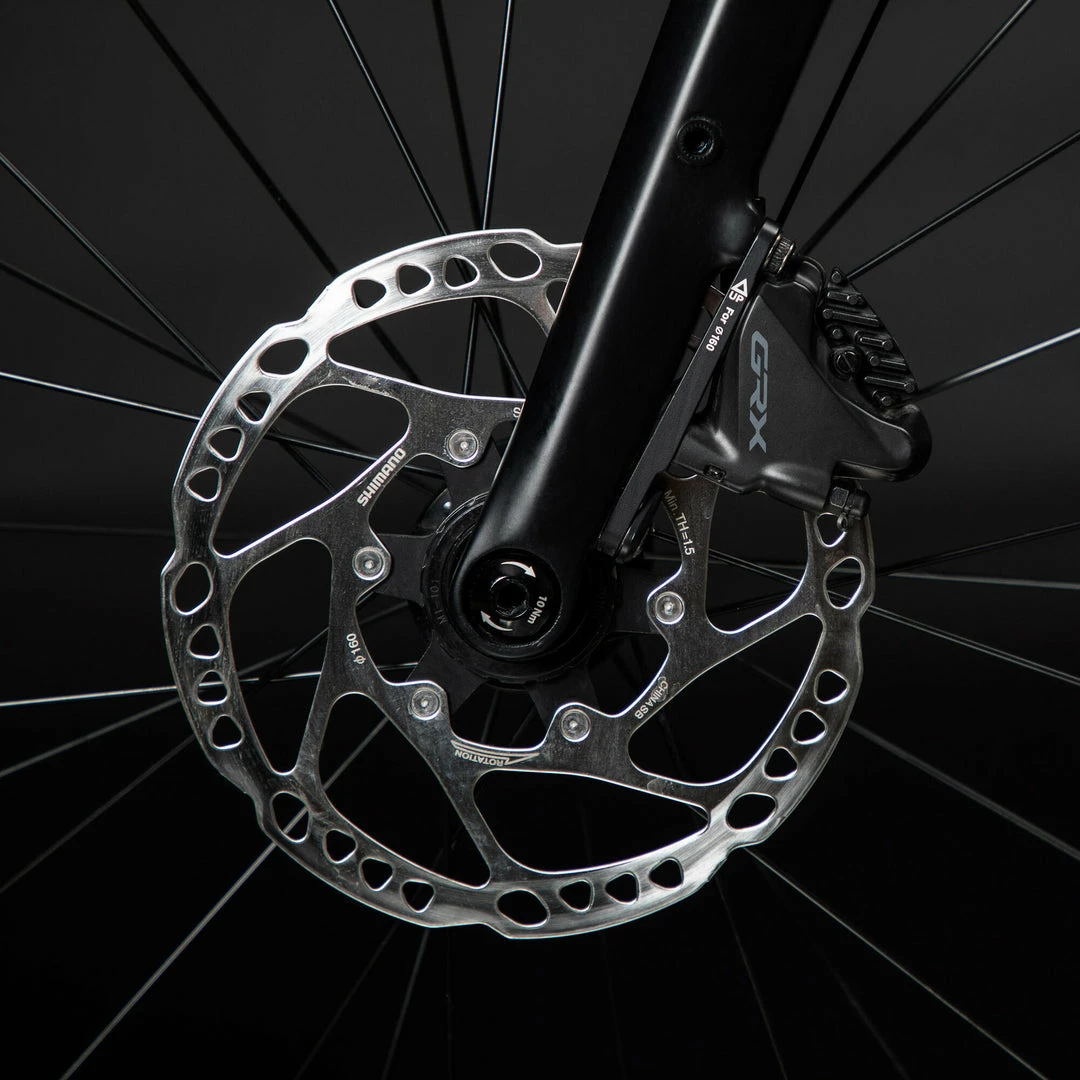

Shimano GRX 400 hydraulic disc brakes
Shimano RT-64 disc (160 mm at the front and back)
Housing
Shimano L03A resin (organic) brake pad

Wheels

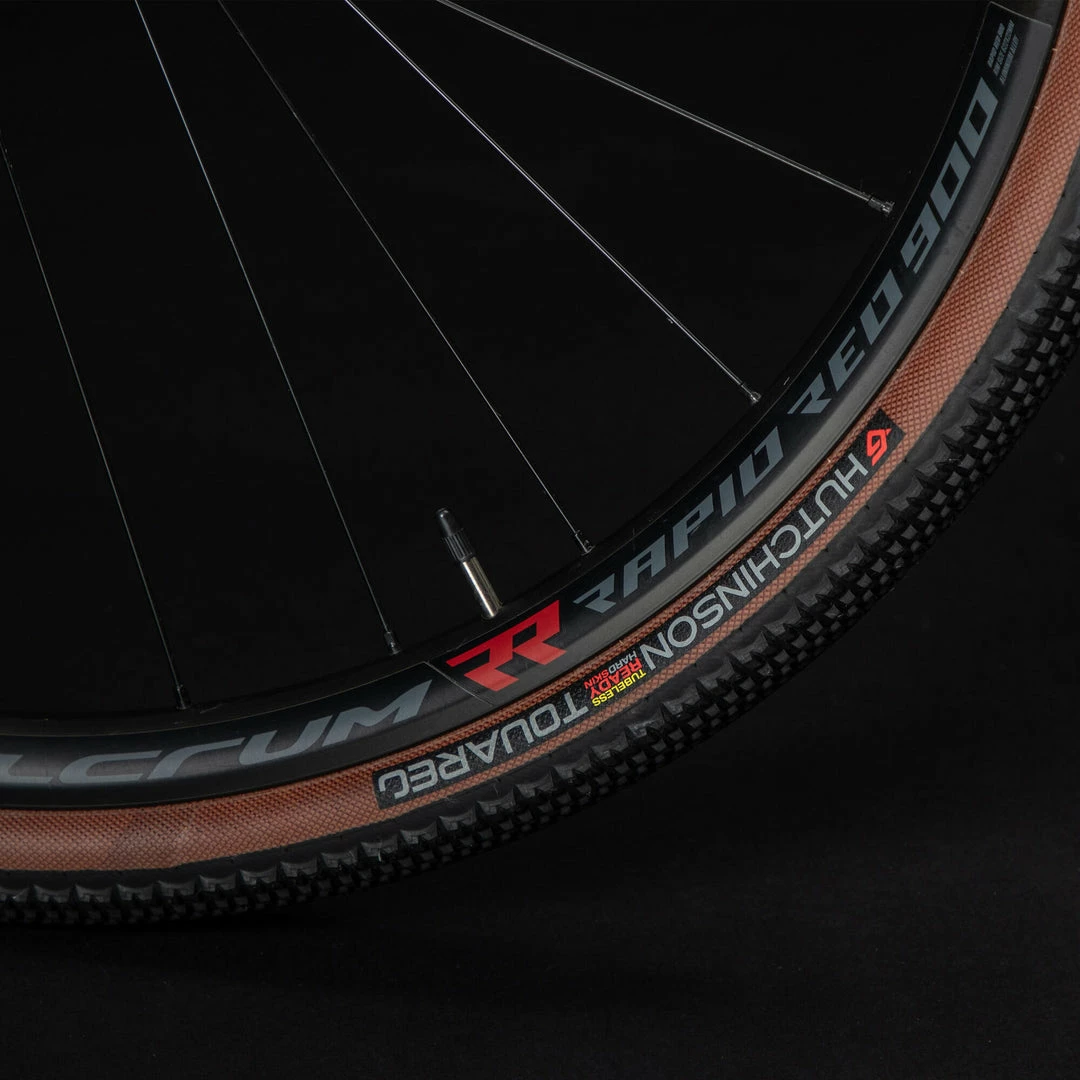

Fulcrum Rapid Red 900 DB 2 700x22c Tubeless Ready gravel wheels
6063 T66 aluminum.
ETRTO dimensions: 622 x 22c
28H asymmetric rim (height: 241 cm, inner width: 22 cm, outer width: 27.1 cm)
Fulcrum Racing DB9 hub
Thru axle (front: 12 x 100 mm, rear: 12 x 142 mm) with M12 Allen key
Weight per pair (without cassette and QR): 4.3 lbs
Fulcrum TLR rim tape
*To convert to tubeless, simply add tire sealant

Tires

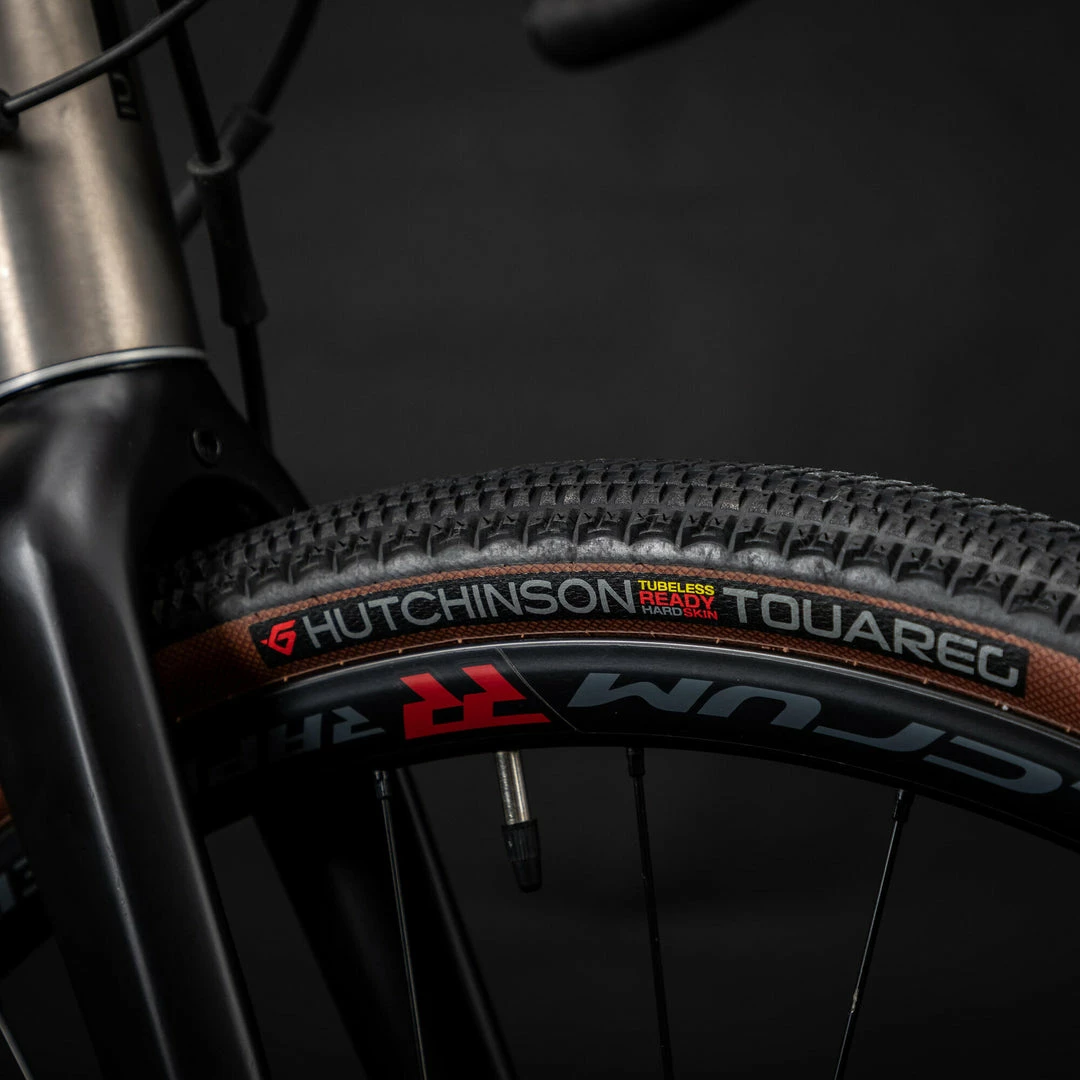

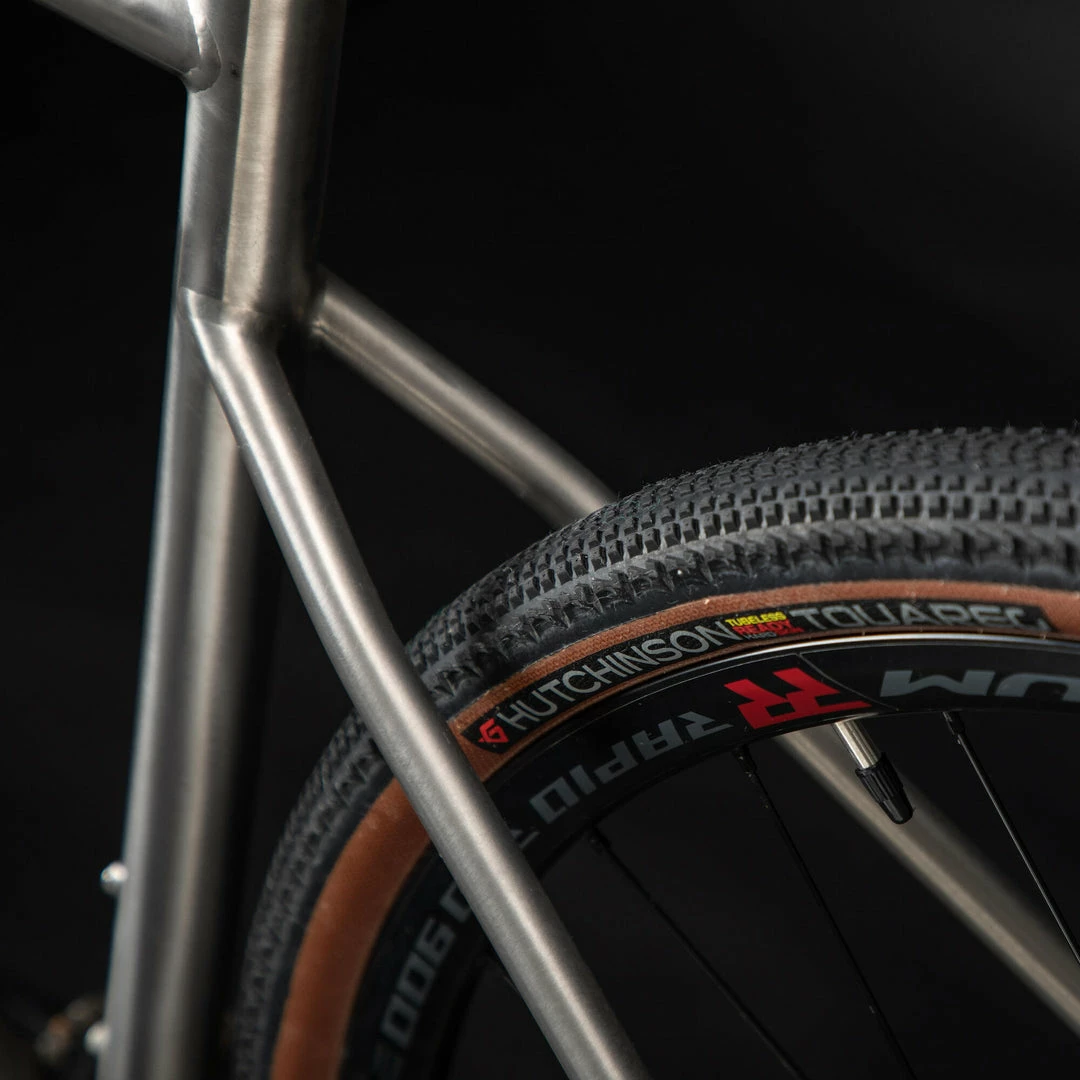

Hutchinson TOUAREG 700×40, Tubeless Ready tires with hardskin puncture protection
1.1 lbs per tire
Skinwall folding bead
127 TPI carcass
Dimensions: ETRTO 622-40 / 700x40c
Min inner tube pressure: 2.5 bar / 38psi
Max inner tube pressure: 3.5 bar / 51 psi

Tubeless pressure: 2.5 to 3 bar (185 lb rider)

Saddle / Seat post

Triban saddle. Hammock design for greater comfort.
Aluminum Triban seat post.
Easy seat adjustment
Diameter: 27.2 mm.
Length: 350 mm in M / L / XL, 300 mm in XS / S

The natural flex of the 27.2 diameter seat post dampens vibrations and shocks for added comfort

Pedals

Platform pedals included with the bike.
We recommend either flat or SPD pedals

Tire compatibility

The bike can be fitted with 700×45 or 650×50 tires

Bike weight

Bike weight in size M, without pedals, with an inner tube: 22 lbs

Composition

Frame : 100.0% Titanium

Guarantee

Frame, handlebar, stem, lifetime guarantee, 2 years for the fork and peripheral components

Cycling comfort : 16° comfort+ gravel handlebar; titanium frame for great vibration absorption

Precision : Shimano GRX 600 40T-11/42 groupset

Brake control : GRX 400 hydraulic disc brakes for excellent power and precision

Efficiency : With its titanium frame, this bike is light, dynamic, and extremely comfortable

Lifetime warranty : Lifetime warranty on the frame, stem, and handlebar. Repairable titanium frame
