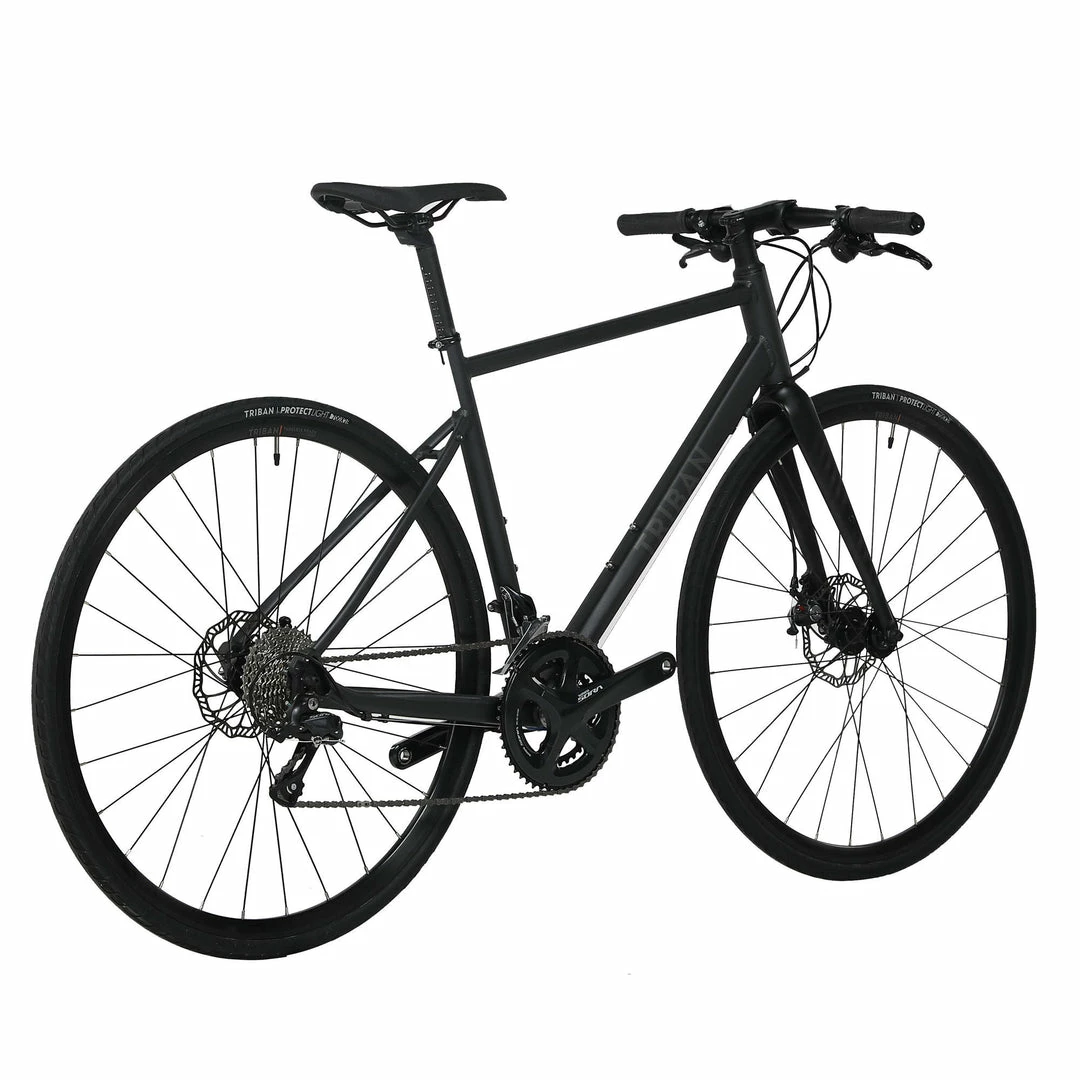

Best Pirce 👍 Triban RC500, Shimano Sora Disc Brake Flat Bar Road Bike ⭐

Comfort road cycling geometry, 28 mm tires, Ergonomic grips, ErgoFit saddle

—specs—

Frame

New Triban Evo frame in 6061 T6 aluminum, comfort-oriented geometry with adapted slope
Weight: 4 lbs in size M
Strong, versatile frame: carrier and mudguard can be installed
Compatible with tires up to 36 mm cross-section

Fork

New Triban Evo fork with carbon blades and aluminum 1-1/8″ Aheadset center. This fork combines comfort, low weight, and precision.
The carbon has been designed to provide good lateral rigidity and good filtering of frontal vibrations.
Inserts on the blades for mounting a front carrier
Max weight to be carried on the fork: 19.8 lbs
Holes on the wheel axle to attach a mudguard
Compatible with tires up to 36 mm cross-section

Handlebar / stem / steering

Ergonomic aluminum Triban flat handlebars for a better grip and excellent comfort.
Ergonomic grip with integrated fixing ring

Handlebar width (axle-to-axle):
XS/S/M: 560 mm.
L / XL : 600 mm.

New Triban stem:

XS: 70 mm
S: 80 mm
M: 90 mm
L: 100 mm
XL: 110 mm

Drivetrain

Shimano Sora trigger R3000 shifters
Shimano Sora R3000 front derailleur
Shimano Sora R3000 9-speed rear derailleur with short cage

Chain KMC Z series

Crankset / cassette

Microshift CS-H092 9V 11/32 cassette
(11/13/15/17/19/21/24/28/32).

Shimano Sora R3000 compact crankset 50/34.
Crank length varies according to size of bike:
XS, S: 170 mm.
M: 172.5 mm.
L, XL: 175 mm.

Brakes

Promax DSK-300R mechanical disc brakes.
Semi-metal pads
160 mm disc brakes at front and rear
JAGWIRE anti-compression housing to ensure braking precision and efficiency
Waterproof housing cap at the bottom frame diagonal tube

Brake levers TEKTRO aluminum CL 530

Wheels

Triban Tubeless ready light wheels
6061 T6 aluminum
ETRTO dimensions: 622 x 17 C
24 mm high for greater lateral rigidity
Crossed stainless steel spokes for improved rigidity (28 front and 28 rear)
Sealed bearings hubs (rear hub suitable for up to 11 speeds)
Weight per pair (without cassette and QR): 4.4 lbs
*Conversion kit required, including 2 tubeless valves + 2 rim strips + sealant (anti-puncture liquid)

Tires

Triban protect light tires
13.8 oz
Skinwall stiff bead
Nylon anti-puncture protection
Durable carcass: 60 TPI.
Dimensions: 28c-622 / 700 x 28c for greater comfort
Max pressure: 8 bar / 116 psi.

Saddle / Seat post

New Triban ErgoFit saddle. Hammock design for greater comfort. Aluminum Triban seat post.

Diameter: 27.2 mm.
Length: 350 mm in M / L / XL, 250 mm in XS / S

Pedals

Double side pedal with toe clips

Weight

Weight without pedals :
XS: 22.7 lbs
S : 22.8 lbs
M : 22.9 lbs
L : 23.1 lbs
XL : 23.4 lbs

Accessories / equipment

Comes with a front, rear and wheels reflectors and bell.

Product Testing

What is uncompromised comfort?

Laboratory tests: Rigidity of the fork, comfort (geometry)

Field tests: Long rides, legendary races (Ardéchoise, Paris-Roubaix, Tour des Flandres,…), gravel rides, long distances (with pannier bags)

Composition

Bike frame : 100.0% Aluminium 6061

Storage Instructions

Store your bike in a dry, cool place. If riding or storing your bike in a salty environment, be sure to wash your bike after each use.

Guarantee

Lifetime warranty on frame, handlebar, stem. 2 years on fork and peripheral components.

—/specs—

—catchline—

Cycle further and more often with the most comfortable road bike we’ve ever designed in flat bar version. Discover its disc braking, special geometry, and Shimano Sora groupset
